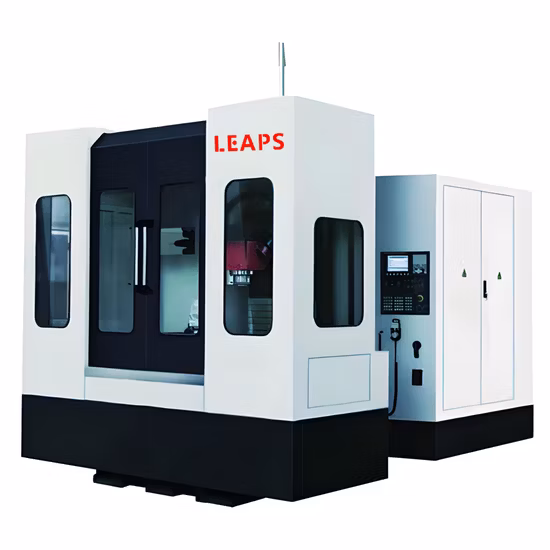

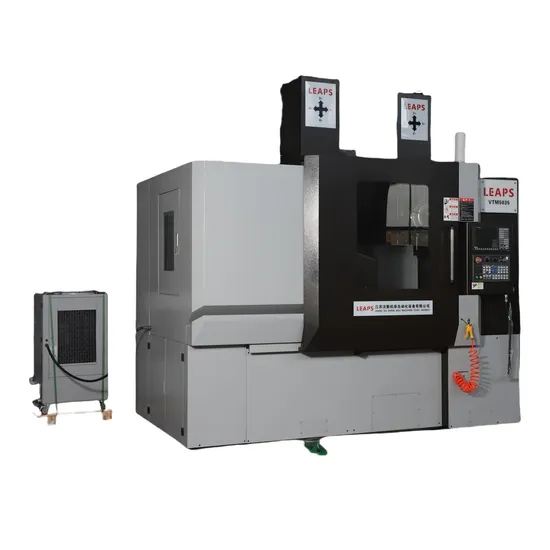

professional Kinds of Precision Vmc Machine Center with Customized

Basic Info

Model NO.	W1165
Numerical Control	CNC/MNC
Processing Precision	0.01~0.02(mm)
Performance Classification	High-End CNC Machine Tools
Certification	CE, ISO 9001
Condition	New
Customized	Available
Transport Package	Wooden Case
Specification	machine size: 223022402430 Net weight 4.1T
Trademark	W
Origin	China
HS Code	8459699000
Production Capacity	30sets/Month

Product Description

Model NO.	W1165	Performance Classification	Economical CNC Machine Tools
Certification	CE, SGS, ISO 9001	Condition	New
Table Size	1200*650mm	X/Y/Z Axis Travel	1100/650/650 mm
Transport Package	Wood Case	Specification	CE ISO9001 SGS
Trademark	W	Origin	China
HS Code	8459699000	Production Capacity	30set/mothly

Packaging & Delivery

Package size per unit product	341024102780
Gross weight per unit product	7.2T

Product Description

professional Kinds of Precision Vmc Machine Center with Customized

Features: · Convincing arguments: quality, efficiency and price· Imported high rigidity screw, guide rail, coupling and other moving parts, good stability and high precision.· High-inertia and high-torque feed servo and processing capacity are superior to other manufacturers' products of the same level.· Heavy duty roller screw guides on three axis featured with both heavy cutting hard guide and high speed & precision linear guide, low friction and long service life· Components with CE certification.· The bus-type system makes the electrical system more stable.· German technical basic machine body, good rigidity and high precision.· Equipped with 1ooooRPM high speed servo spindle as standard, no noise.· The Z-axis of the machine tool has no counterweights and no vibration during machining.· Conform to European Safety Standards(suitable for export)
Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Product main technical parameters:

Specification		W1165
X/Y/Z-Axis Travel	mm	1100/650/650
Distance From Spindle Nose To Table	mm	110-760
Distance From Spindle Center To Column Guideway	mm	750
Spindle Motor Power	kw	11/15
Spindle Speed	rpm	10000
Spindle Taper		BT40/(150)
Positioning Accuracy	mm/300mm	±0.003
Repeatability Accuracy	mm/300mm	±0.0015
Working Table Size	mm	1200X650
Max. Working Table Load Capacity	kg	950
T-Slot Qty-Width-Distance	mm	5-18-120
X/Y/Z-Axis Rapid Feed Speed	m/min	36/36/36
Feed Speed	mm/min	1-10000
Dia. Of X/Y/Z-Axis Ball Screw	mm	Φ40
X/Y/Z-Axis Servo Motor Power	kw	3.0/3.0/4.5
Linear Guideway Width And Type/Qty/Block Qty	X-Axis	45 Roller/2/6
	Y-Axis	45 Roller/2/4
	Z-Axis	45 Roller/2/6
Controller		FANUC,Siemens,Mitsubishi, GSK Optional
Max. Power Consumption	kva	25
Net Weight	ton	7.2
Overal Dimensions		341024102780

Company information: FAQ:
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?A : Our factory is located in Yangzhou City ,Jiangzhou Province, China. You are warmly welcomed to visit us.

4. What is your trade terms?A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
